Saw dust extractors type PO


Tel: +386 64 166 338
Email: matej.oman@gros.si

FEATURES:

  • Extraction of all types of sawdust (wood particles)
  • Use in the wood processing industry
  • Adjustable suction and outlet nozzles with a diameter of 100-200mm
  • Electric motor power from 1.5 – 7.5kW
  • Hydraulic type

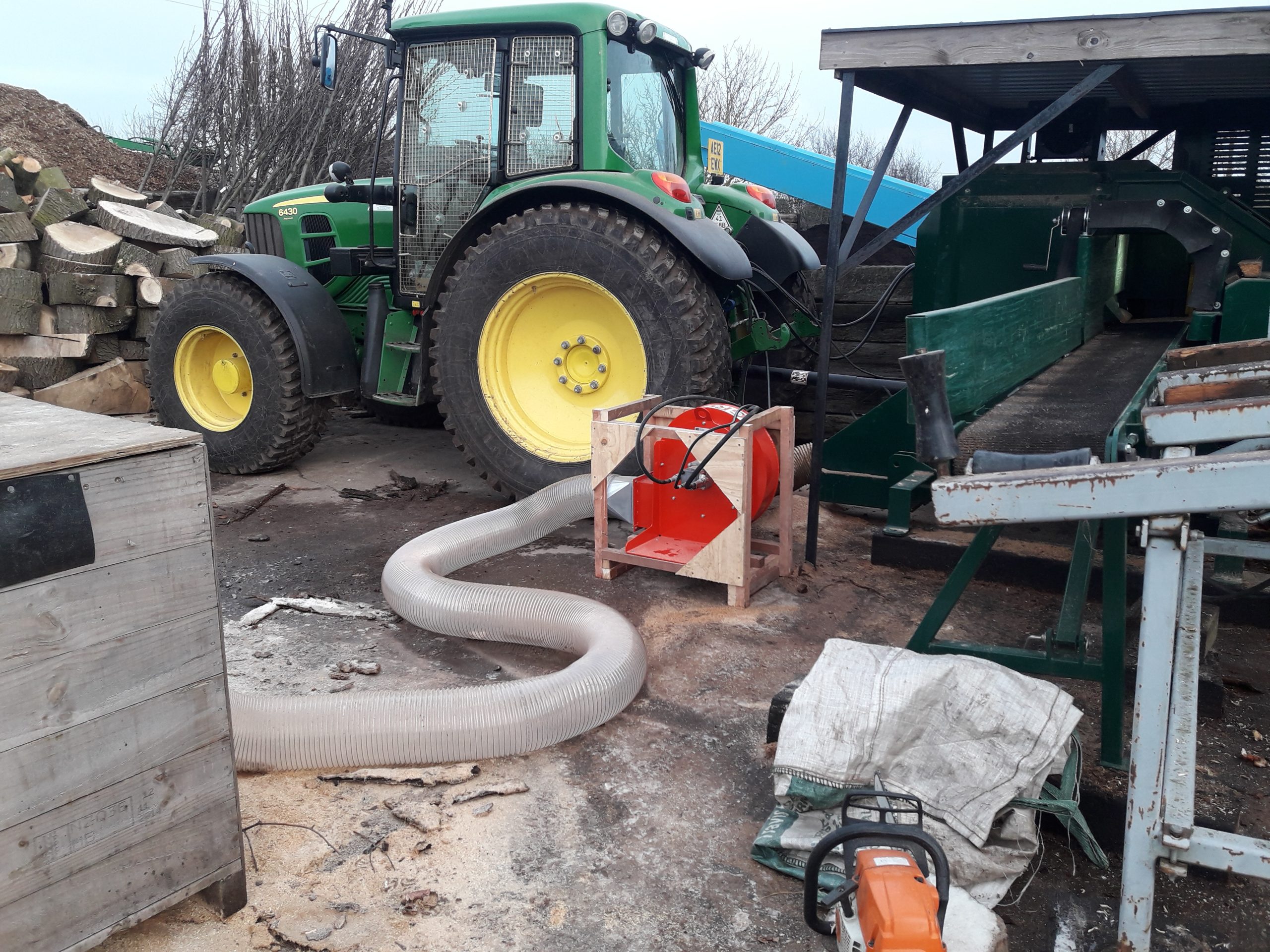

  • PTO  type
  • Rotating housing
  • Gros fans are characterized by high efficiency and low noise level.

ADVANTAGES:

  • Versatility of use.
  • Exceptional suction power
  • Robust construction
  • The possibility of changing the diameter of the outlet and inlet nozzle for air 100-200mm
  • Gros products are characterized by 45 years of experience, knowledge and development.
  • Long lifespan.
  • Expert advice and assistance in the use of Gros Products.

Options:

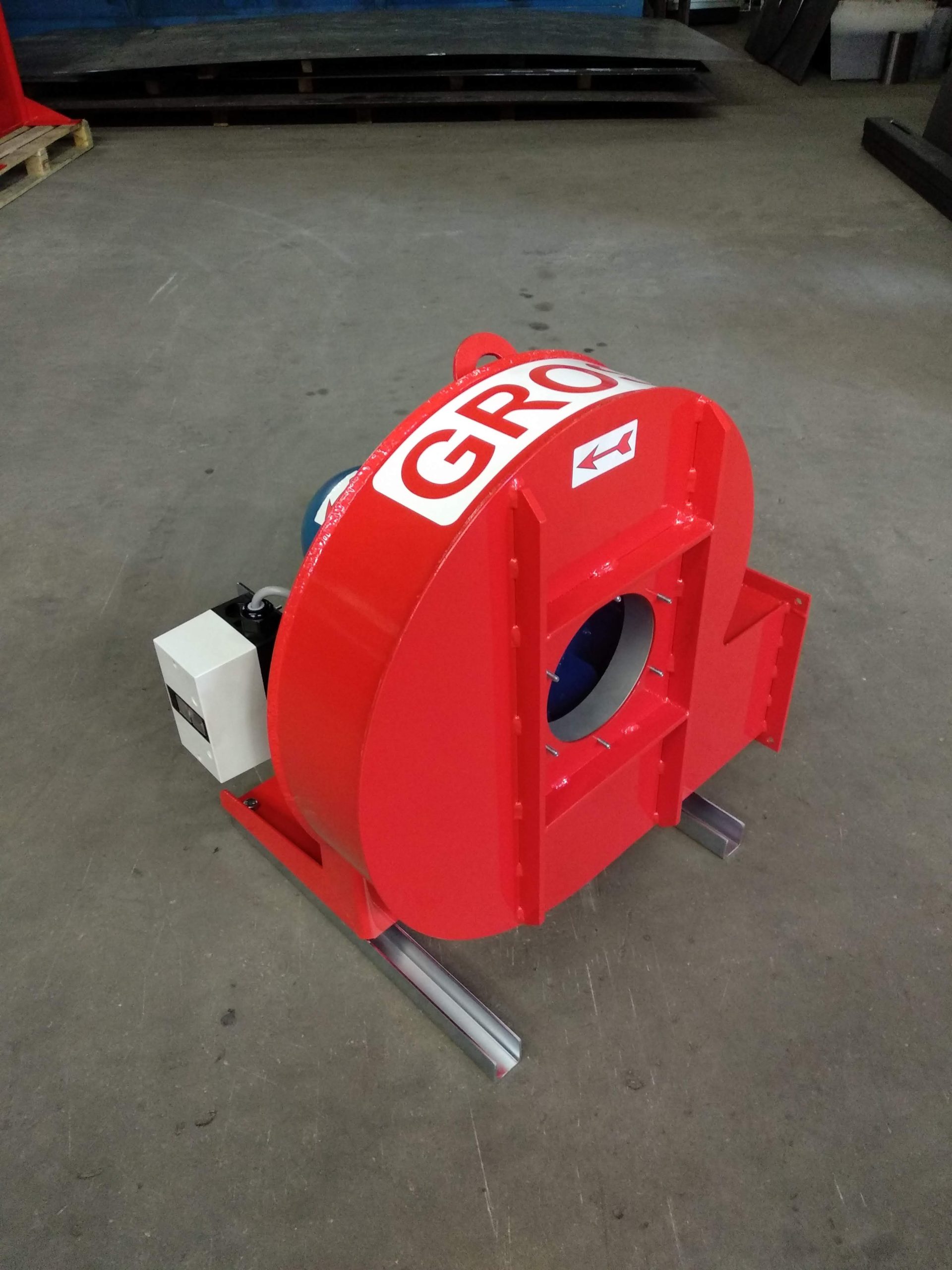

  • with power switch and plug
  • inlet and outlet fittings of different diameters fi80-fi300

TYPES OF EXTRACTORS:

El. motor extractors PO

  • PO-35 (1,5kW)
  • PO-40 (2,2kW)
  • PO-45 (4kW)
  • PO-50 (5,5kW)

Hydraulic extractors POH

  • POH-35
  • POH-40
  • POH-45
  • POH-50
PO-35 PO-40 PO-45 PO-50 PO-56 PO-63
Outlet opening width 110 mm 125 mm 160 mm 180 mm 200 mm 230 mm
Outlet opening height 175 mm 200 mm 230 mm 240 mm 290 mm 320 mm
Inlet ⌀ 150 mm 165 mm 200 mm 215 mm 250 mm 300 mm
Power P 1,5 kW 2,2 kW 4,0 kW 5,5 kW 9,0 kW 15,0 kW
Max presure Pmax 2.100 Pa 2.850 Pa 3.700 Pa 4.600 Pa 5.700 Pa 6.800 Pa
Working point p 1.300 Pa 1.850 Pa 2.400 Pa 3.200 Pa 4.600 Pa 5.500 Pa
Working point Q 0,5 m3/2 0,7 m3/2 1,0 m3/2 1,2 m3/2 1,5 m3/2 2,1 m3/2
